Active Organization Authenticator

Note that to have the active_organization information in tokens, you need the "Active Organization" mapper.

Explanation​

You can add the Select Organization authenticator into the user authentication flow. With this authenticator enabled, you can pass the query parameters:

  • prompt=select_account
  • account_hint={ORG-ID}

In all cases, if the user tries to access an organization where they are not a member, an error will be returned.

prompt=select_account​

If the prompt=select_account is given for the authentication flow, the user will be requested to select an organization during login.

Note that:

  • If the user doesn't have any organization, an error is returned.
  • If the user has only 1 organization, the selection will be skipped, and it will use this organization.

Example of authentication request:

{HOSTNAME}/realms/{REALM}/protocol/openid-connect/auth?response_type=code&client_id={PUBLIC-CLIENT}&scope=openid&redirect_uri={HOSTNAME}/realms/{REALM}/account&prompt=select_account

account_hint​

If the account_hint={ORG-ID} is given for the authentication flow, it will use the given organization without having to select one. Example of authentication request:

{HOSTNAME}/realms/{REALM}/protocol/openid-connect/auth?response_type=code&client_id={PUBLIC-CLIENT}&scope=openid&redirect_uri={HOSTNAME}/realms/{REALM}/account&account_hint={ORG-ID}

or with the prompt=select_account:

{HOSTNAME}/realms/{REALM}/protocol/openid-connect/auth?response_type=code&client_id={PUBLIC-CLIENT}&scope=openid&redirect_uri={HOSTNAME}/realms/{REALM}/account&prompt=select_account&account_hint={ORG-ID}

account switching​

To switch account based on account_hint, you will need to define the 'Select Organization' step after the Cookie step. For that, you will need to define a Sub-Flow like this:

account-switch

Then making an authentication request with account_hint:

{HOSTNAME}/realms/{REALM}/protocol/openid-connect/auth?response_type=code&client_id={PUBLIC-CLIENT}&scope=openid&redirect_uri={HOSTNAME}/realms/{REALM}/account&account_hint={ORG-ID}

Will skip the select organization form and switch the organization (change user's attribute).

Built-in Flows​

A browser flow and direct grant flow have been added. They are similar to the default Keycloak built-in flows but include the Select Organization step.

built-in-flows

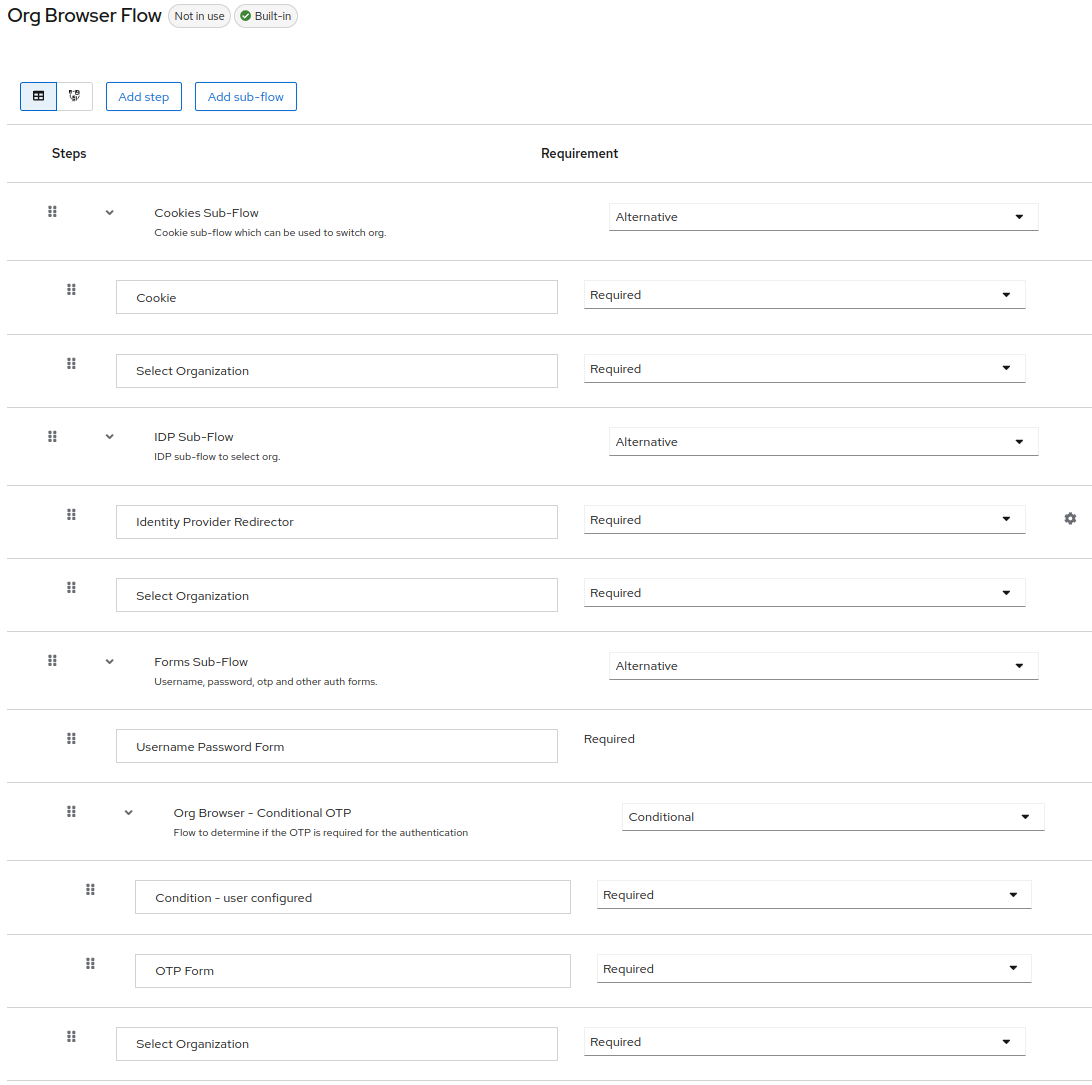

Select Org Browser Flow​

Configuration​

browser-config

Flow​

browser-flow

Select Org Direct Grant Flow​

Configuration​

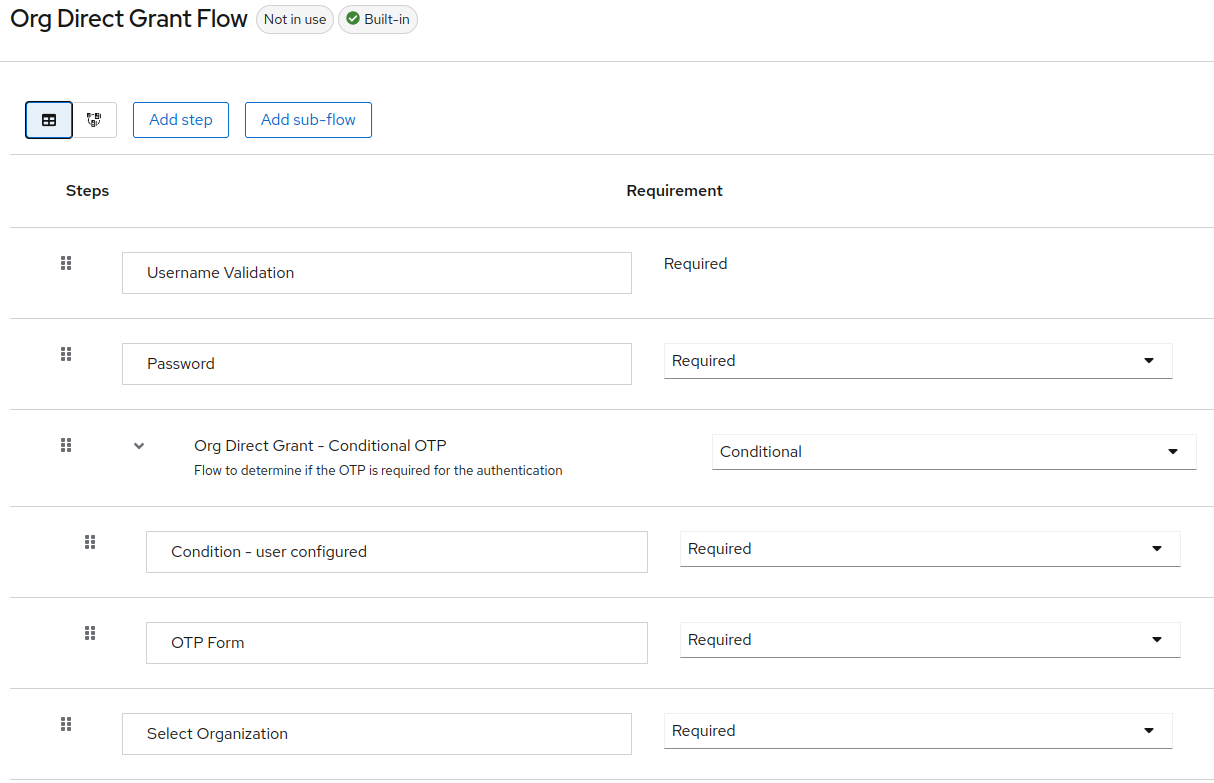

direct-grant-config

Flow​

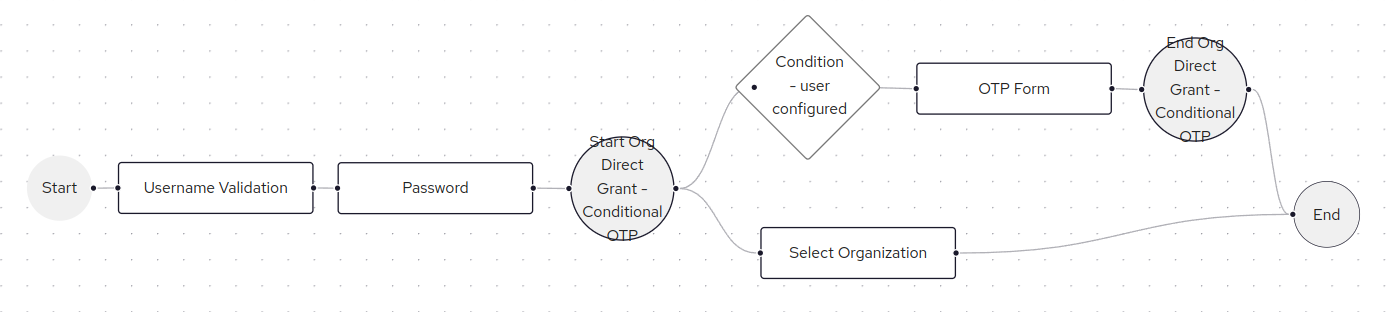

direct-grant-flow

Configuration & Example​

Browser Flow (Configuration)​

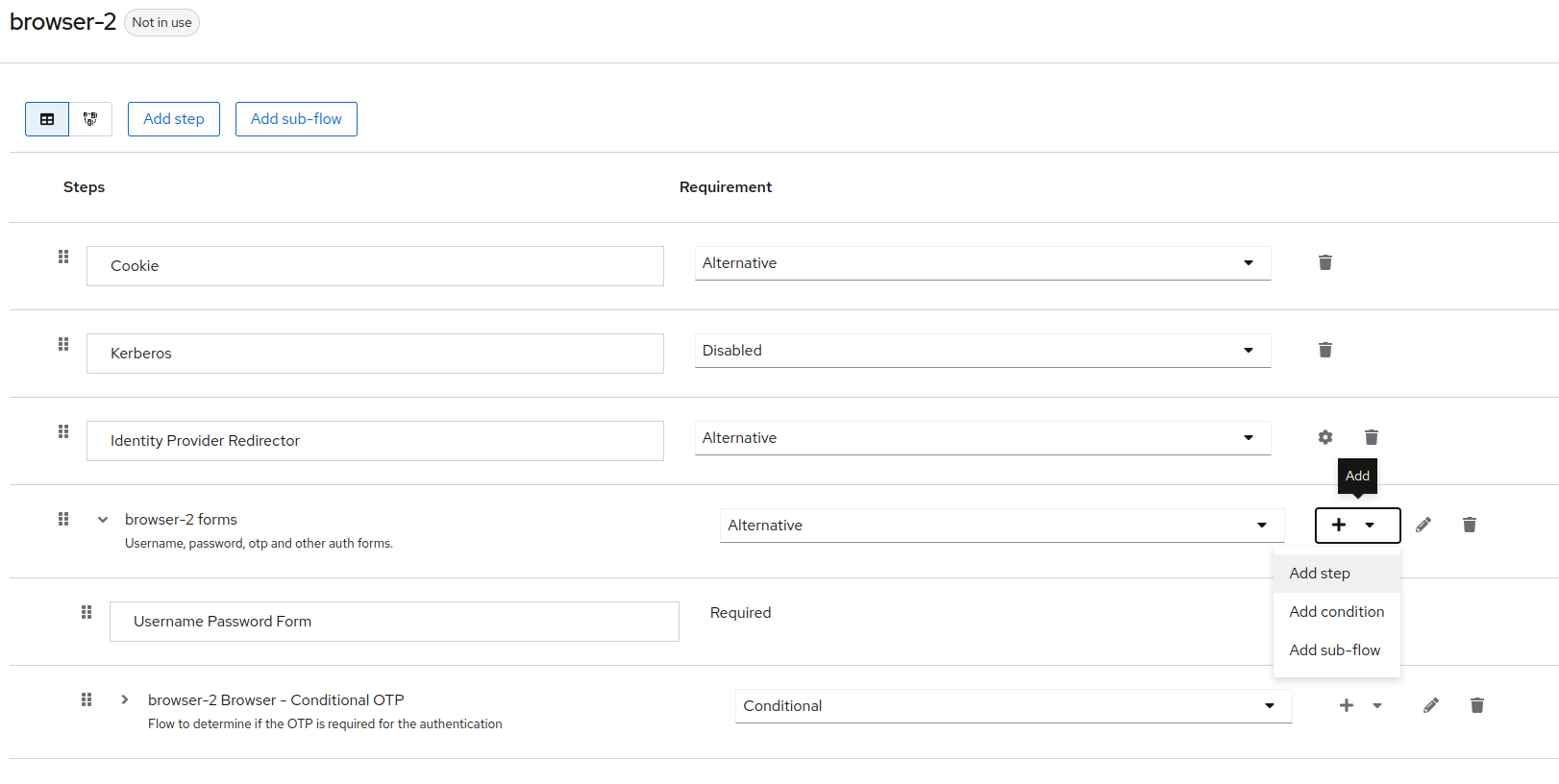

To configure the Browser Flow, you need to duplicate the default Browser flow and modify it. In the forms part (with Username Password Form), select Add Step.

add-step

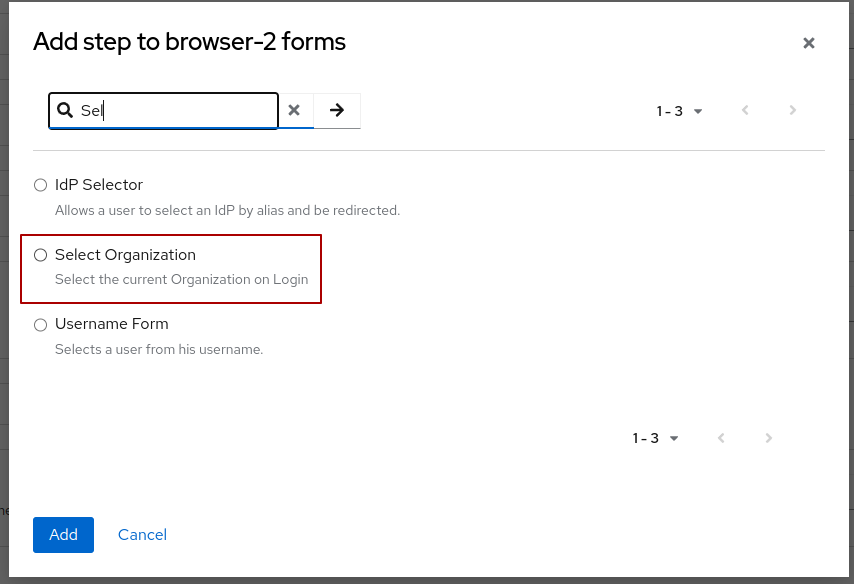

In the selection, search and select Select Organization.

select-org-step

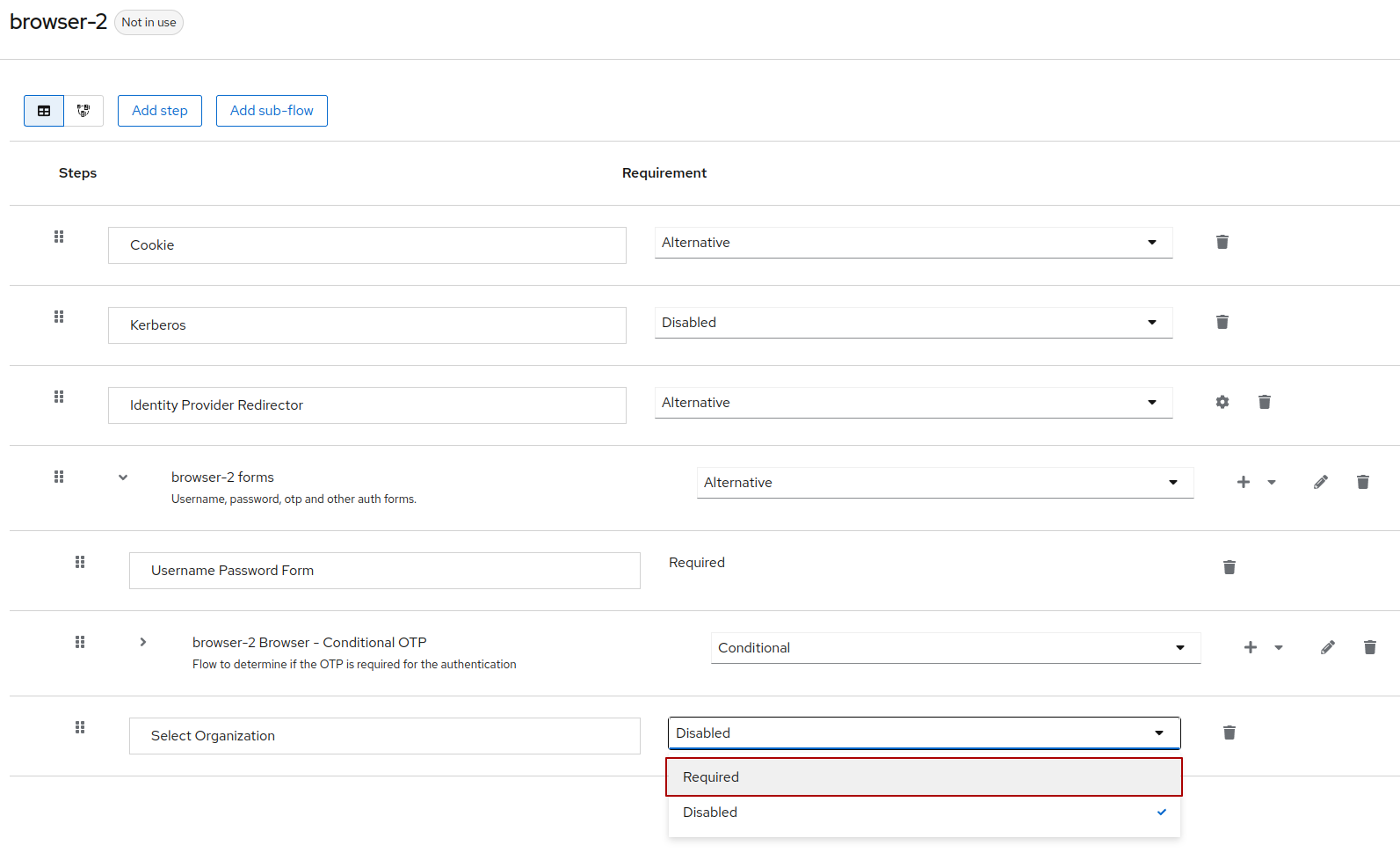

Once selected, enable it by setting it to Required.

enable-select-organization

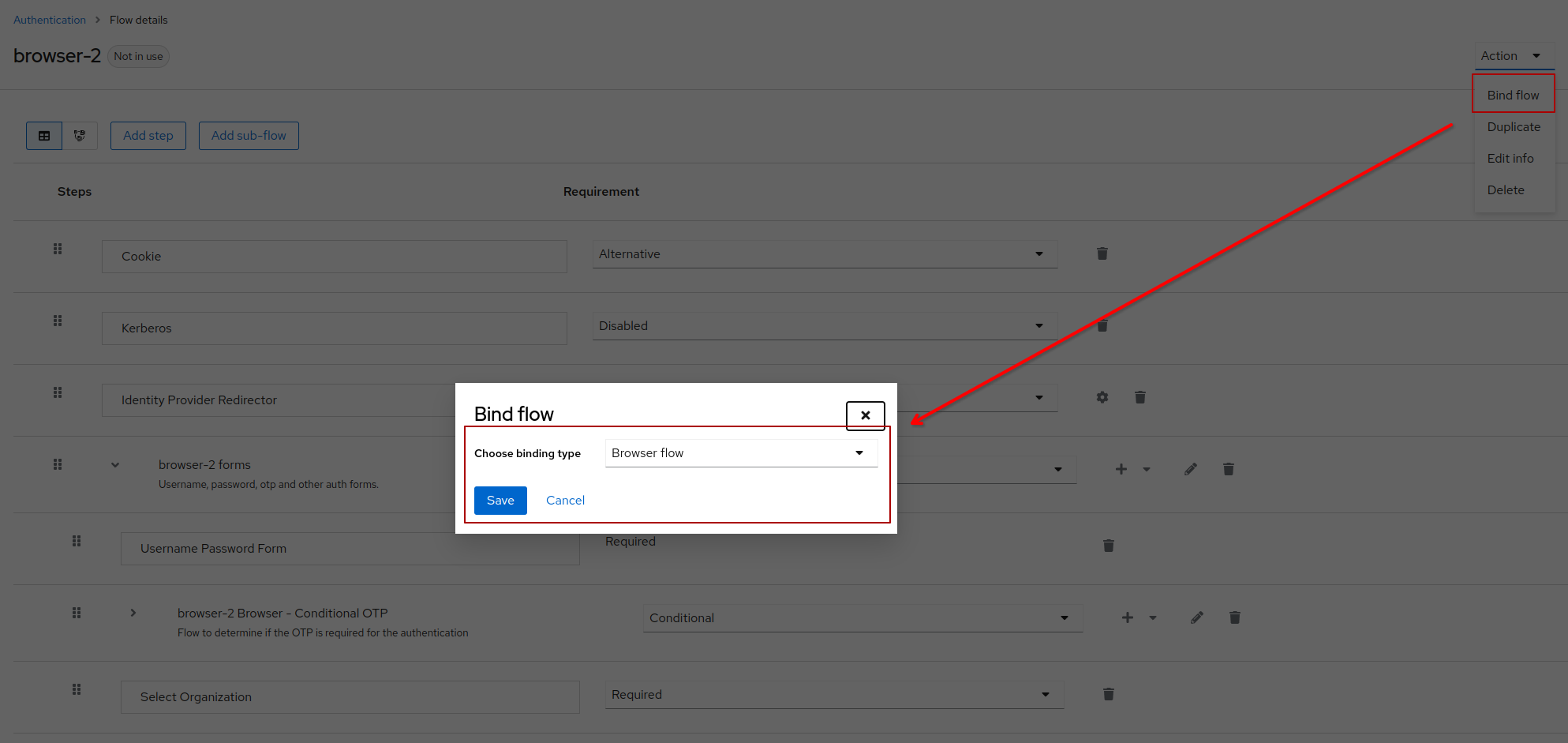

Don't forget to bind this flow to "Browser flow".

bind-flow

Examples (Tests)​

Once configured, you can test the authenticator with an authentication request including prompt=select_account.

Example:

{HOSTNAME}/realms/{REALM}/protocol/openid-connect/auth?response_type=code&client_id={PUBLIC-CLIENT}&scope=openid&redirect_uri={HOSTNAME}/realms/{REALM}/account&prompt=select_account

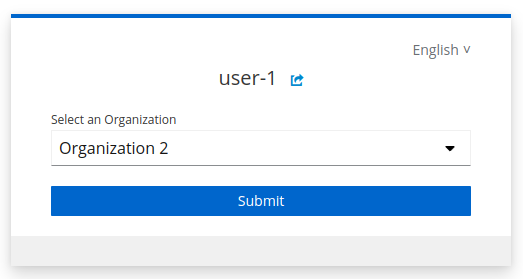

Once the user enter his username (or email) and password, he will have a drop-down to select an organization.

org-choice-1

org-choice-2

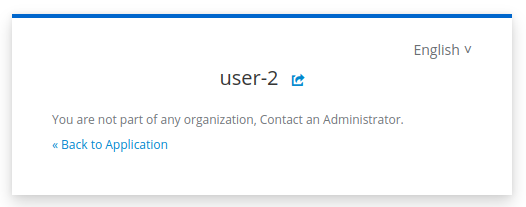

If the user has no organization, instead of the selection step, he will get an Error message.

no-org

If the user try to access an organization where is not a member (with account_hint for example), he will also get an error message.

not-member

Not that doing the authentication request with account_hint={ORG-ID} will skip the selection during log-in but still verify that the user has an organization or has membership.

Direct Grant Flow (Configuration)​

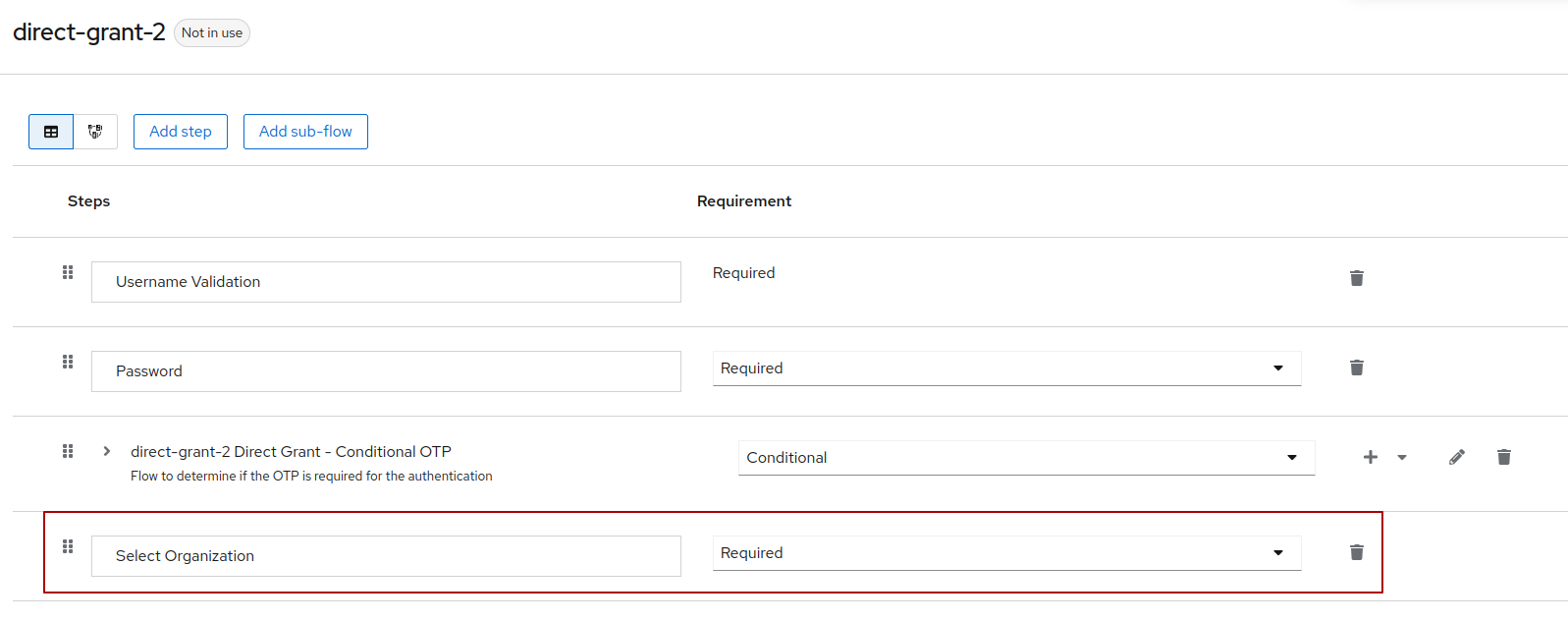

account_hint={ORG-ID} of "Select Organization" authenticator can also be used for a Direct Grant flow. For that, apply the same configuration as the browser flow to the direct grant flow.

direct-grant

Then, when you make the direct grant authentication, you can pass the query parameter account_hint{ORG-ID} and it will be used to define the active_organization.

Example:

{{HOSTNAME}}/realms/{{REALM}}/protocol/openid-connect/token?account_hint={ORG-ID}

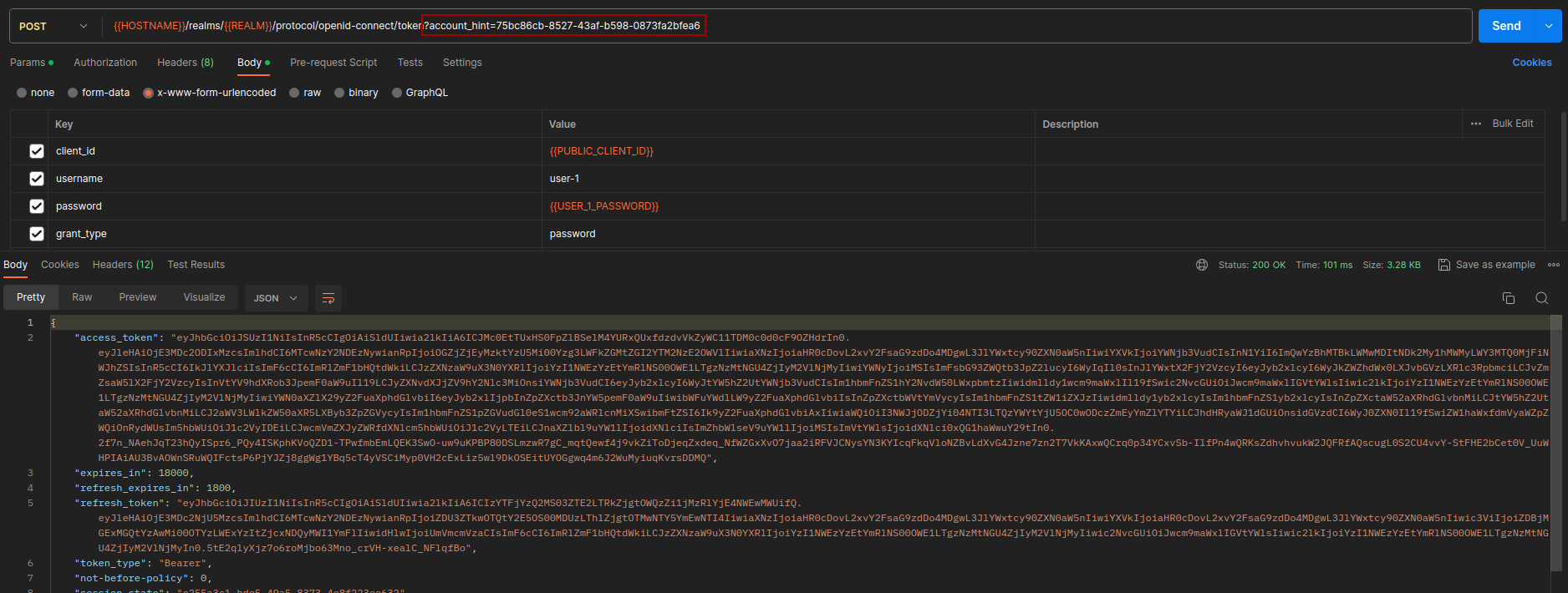

direct-grant-2
